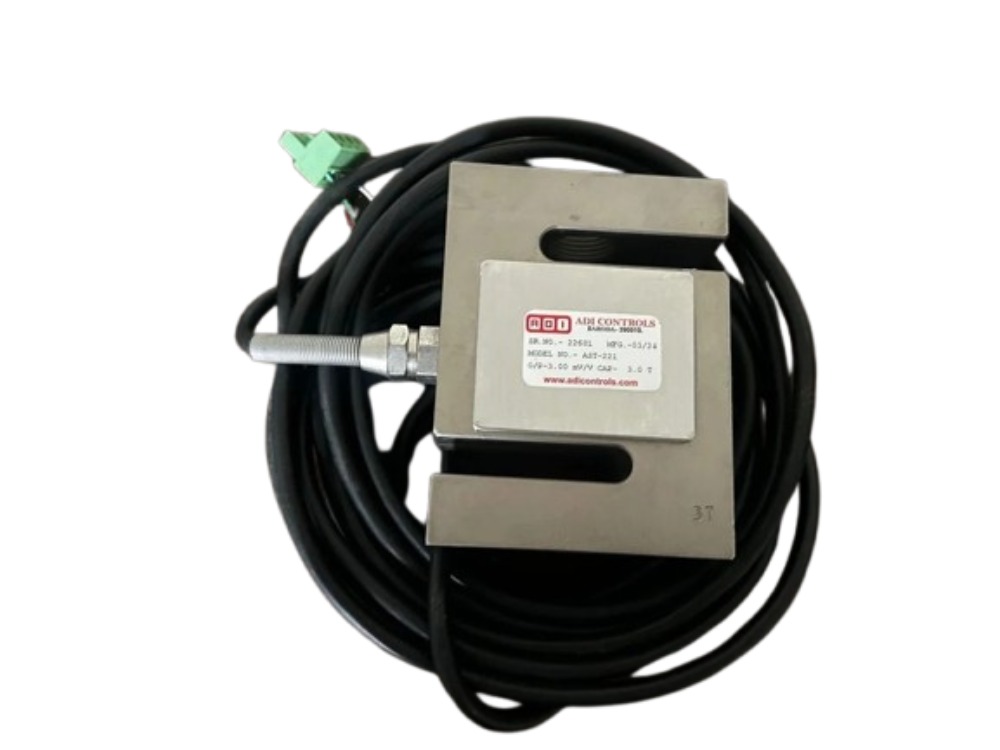

ADI Controls S Type Load Cell

Name: ADI Controls S Type Load Cell
Brand: ADITYA WEIGHING ENTERPRISES
Price: 3500.0 INR
Availability: InStock

Price 3500.0 INR/ Piece

Get a Price/Quote

MOQ : 4 Pieces

ADI Controls S Type Load Cell Specification

Display Type
None (used with external indicator)

Usage
Industrial Weighing, Force Measurement

Automatic Grade
Manual

IP Rating
IP67

Application
Hopper, Tank, Crane Weighing, Industrial Automation

Size
Varies by capacity (refer datasheet)

Interface
Analog Output

Connectivity Type
Wired

Power Source
External

Function
Force Measurement

Features
High accuracy, robust construction, easy mounting

Product Type
S Type Load Cell

Weighing Scale Type
Industrial Scale

Material
Alloy Steel

Power Supply
10V DC nominal (excitation voltage)

Monitor Display
Not included

Load
Tension and Compression

Accuracy
0.02% of Rated Output

Capacity Range
50 kg to 5,000 kg

Color
Metallic Grey

Cable Length
5 meters (standard)

Mounting Type
Threaded Holes

Output Sensitivity
2.0 mV/V

Safe Overload
150% of Rated Capacity

Ultimate Overload
250% of Rated Capacity

Insulation Resistance
>5000 M (at 50V DC)

Hysteresis
0.02% of Rated Output

Creep
0.03% of Rated Output over 30mins

Non-linearity
0.02% of Rated Output

Operating Temperature Range
-10C to +50C

Material Finish
Nickel Plated

ADI Controls S Type Load Cell Trade Information

Minimum Order Quantity
4 Pieces

Delivery Time
1 Week

About ADI Controls S Type Load Cell

AMC-921 multi-column compression load cell is a specialized, high-capacity force transducer designed to measure compressive forces with exceptional accuracy, often featuring enhanced stability and robustness compared to simpler column or canister designs. It consists of a load-bearing structure where the force is distributed across multiple sensing columns (or pillars) arranged in a circular or symmetric pattern. Primarily designed for compression (pushing) forces, these cells excel in high-capacity applications due to the strength provided by the multiple columns sharing the load. By distributing the load, this design often offers superior resistance to bending moments and side loads compared to a single-column load cell. This results in higher accuracy and better repeatability, particularly under challenging industrial conditions. They are typically made of high-grade steel, are often hermetically sealed (welded) or highly protected, and feature very high IP ratings for durability in harsh environments. It is also known as model 90210

High Accuracy and Durability

Built to deliver outstanding measurement stability, the ADI Controls S Type Load Cell offers 0.02% non-linearity and hysteresis of rated output. Its nickel-plated alloy steel structure and IP67 protection ensure resilience in tough industrial settings, making it a reliable choice for critical force measurement tasks.

Flexible Installation and Wide Capacity Range

This load cell features threaded mounting holes for straightforward setup and is available in capacities ranging from 50 kg to 5,000 kg. The device accommodates diverse industrial requirements, allowing for seamless integration into weighing systems such as tanks, hoppers, and cranes with varying load needs.

Engineered for Industrial Applications

Designed for both tension and compression applications, the S Type Load Cell operates flawlessly across temperatures from -10C to +50C. It is ideally suited for force measurement and industrial weighing processes, ensuring accuracy and reliability where precision is crucial.

FAQ's of ADI Controls S Type Load Cell:

Q: How is the ADI Controls S Type Load Cell typically used in industrial applications?

A: This load cell measures both tension and compression forces, making it suitable for hopper, tank, and crane weighing systems, as well as for use in automation and general force measurement within industrial environments.

Q: What are the benefits of the high output sensitivity and accuracy ratings of this load cell?

A: With an output sensitivity of 2.0 mV/V and accuracy of 0.02% of rated output, the load cell ensures highly precise measurements, minimizing errors and providing reliable results essential for critical industrial weighing and monitoring applications.

Q: Where can I install the ADI Controls S Type Load Cell, and what mounting options are available?

A: Thanks to its threaded mounting holes, the load cell can be easily mounted within a wide variety of industrial setups, including tanks, hoppers, and crane systems, offering flexibility for different installation requirements.

Q: What is the safe and ultimate overload capacity of this load cell, and why is it important?

A: The safe overload is 150% and the ultimate overload is 250% of the rated capacity. These ratings ensure the load cell can withstand accidental overloads during operation without damage or permanent deformation, enhancing system safety and dependability.

Q: What is the required power source and interface for the S Type Load Cell?

A: The load cell requires a 10V DC nominal excitation voltage supplied externally and provides an analog output. It does not feature an onboard display and must be used with an external indicator or data acquisition system.

Q: What process is involved in integrating this load cell with an external indicator or weighing system?

A: To integrate the load cell, connect its 5-meter wired output to a compatible external indicator or weighing controller. Calibration should be performed according to the system's requirements to ensure accurate force measurement and display.
