Compression Load Cell, 30 ton

Name: Compression Load Cell, 30 ton
Brand: ADITYA WEIGHING ENTERPRISES
Price: 14500.0 INR
Availability: InStock

Price 14500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Compression Load Cell, 30 ton Specification

Features
High Accuracy, Hermetically Sealed, Corrosion Resistant

Function
Compression Force Measurement

Display Type
LED/ LCD

Application
Heavy Duty Weighing and Force Measurement

Usage
Weighbridge, Tank Weighing, Industrial Scales

Power Source
Electric

Automatic Grade
Automatic

IP Rating
IP68

Size
Height 165 mm, Diameter 125 mm

Connectivity Type
Wired

Interface
4-wire/ 6-wire

Product Type
Compression Load Cell

Weighing Scale Type
Industrial Weighbridge

Material
Alloy Steel

Power Supply
10-15 V DC

Monitor Display
Digital

Load
30 ton

Accuracy
0.03% of Rated Output

Capacity Range
30 ton

Color
Metallic Grey

Operating Temperature
-10C to +50C

Protection Class
Hermetically Sealed

Cable Length
10 meters

Creep (30 Minutes)
0.03% F.S.

Output Resistance
700 10

Input Resistance
770 20

Output Sensitivity
2.0 mV/V 0.1%

Insulation Resistance
>=5000 M (50V DC)

Zero Balance
1.0% F.S.

Safe Overload
150% of Rated Capacity

Compression Load Cell, 30 ton Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About Compression Load Cell, 30 ton

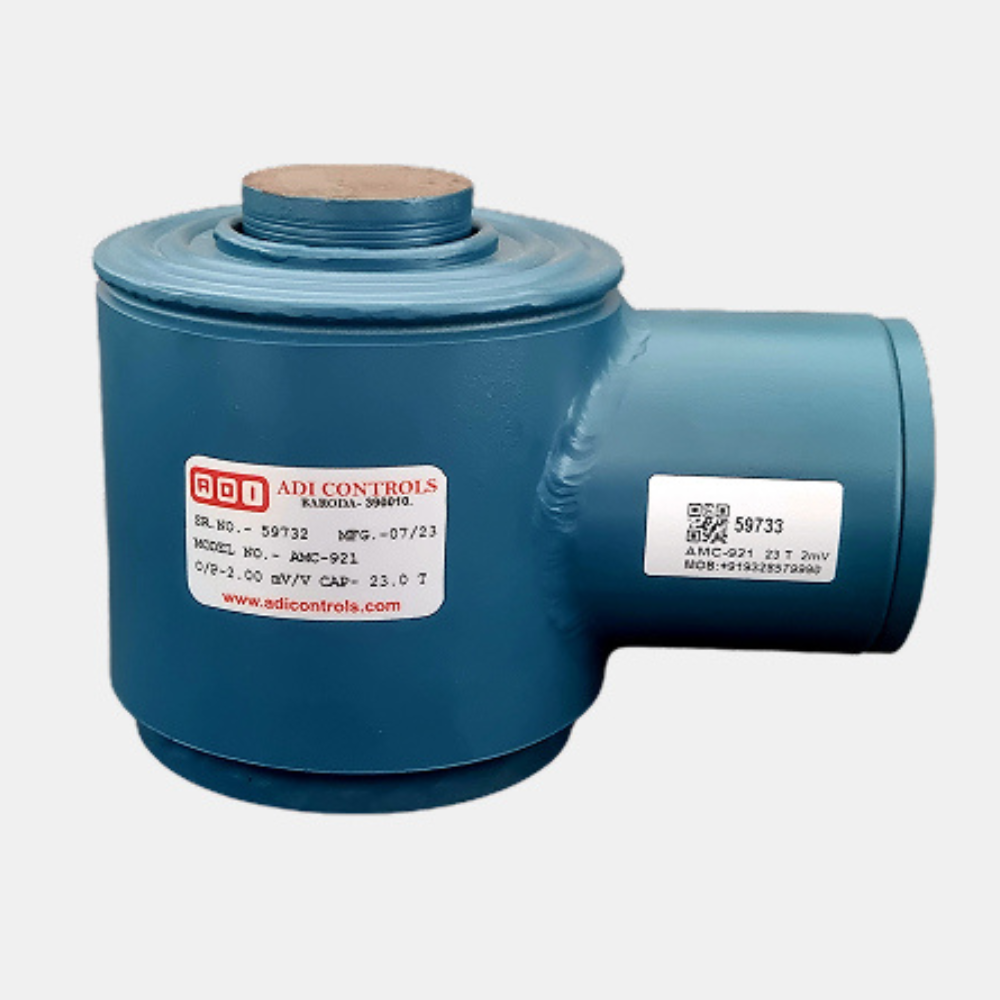

AMC-921 multi-column compression load cell is a specialized, high-capacity force transducer designed to measure compressive forces with exceptional accuracy, often featuring enhanced stability and robustness compared to simpler column or canister designs. It consists of a load-bearing structure where the force is distributed across multiple sensing columns (or pillars) arranged in a circular or symmetric pattern. Primarily designed for compression (pushing) forces, these cells excel in high-capacity applications due to the strength provided by the multiple columns sharing the load. By distributing the load, this design often offers superior resistance to bending moments and side loads compared to a single-column load cell. This results in higher accuracy and better repeatability, particularly under challenging industrial conditions. They are typically made of high-grade steel, are often hermetically sealed (welded) or highly protected, and feature very high IP ratings for durability in harsh environments. It is also known as model 90210

Engineered for Precision and Durability

This 30-ton compression load cell is built for high accuracy and long-term reliability in demanding industrial settings. Its hermetically sealed construction ensures protection against harsh environmental conditions, while its corrosion-resistant alloy steel offers added durability. Whether you require force measurement for weighbridges or tank weighing, this load cell consistently delivers precise results.

Versatile Applications Across Industries

Designed for flexibility, this load cell supports a wide range of applications, from industrial scales and weighbridges to process monitoring in manufacturing plants. The device operates flawlessly between -10C and +50C, ensuring stable performance in diverse climates and workspaces. The combination of LED/LCD digital displays and electric power supply promotes user convenience and automated operation.

FAQ's of Compression Load Cell, 30 ton:

Q: How does the compression load cell measure weight and force accurately?

A: The compression load cell detects applied force through strain gauges, converting mechanical deformation into a highly accurate electrical signal. Its sensitivity of 2.0 mV/V 0.1% and accuracy of 0.03% of rated output ensure precise measurement for industrial applications.

Q: What are the benefits of using a hermetically sealed, IP68-rated load cell in industrial environments?

A: Hermetic sealing and IP68 rating offer superior protection against dust, moisture, and aggressive cleaning, making the load cell ideal for use in harsh or wet industrial settings. This extends the service life and reliability of your measurement equipment.

Q: When should this 30-ton load cell be selected for an application?

A: Choose this load cell when you need to measure heavy compression forces up to 30 tons, particularly in settings like weighbridges and tank weighing, or any industrial scenario requiring high accuracy and overload safety.

Q: Where can this compression load cell be installed and used?

A: It is suitable for installation in weighbridges, tanks, industrial weighing platforms, and force measurement setups, both indoors and outdoors, owing to its corrosion resistance and wide temperature tolerance.

Q: What process is involved in connecting and integrating the load cell?

A: The load cell is equipped with a 10-meter cable and supports both 4-wire and 6-wire connections for flexible integration with digital monitors or control systems. It operates with a 10-15 V DC power supply and outputs readings to LED or LCD displays.

Q: How does automatic operation with digital monitoring enhance user experience?

A: Automatic operation simplifies the weighing process, while digital displays provide clear, real-time readouts. This reduces manual errors and facilitates efficient monitoring and control for industrial users.
